Pulse oximeter

OX-105Equipped with a breathing rate display function!

Displays the number of breaths per minute (for adults weighing approximately 40kg or more)

White

  • Measures blood oxygen saturation (SpO2), pulse rate, and PI value
  • Approximate measurable weight: 10kg or more (excluding respiratory rate)

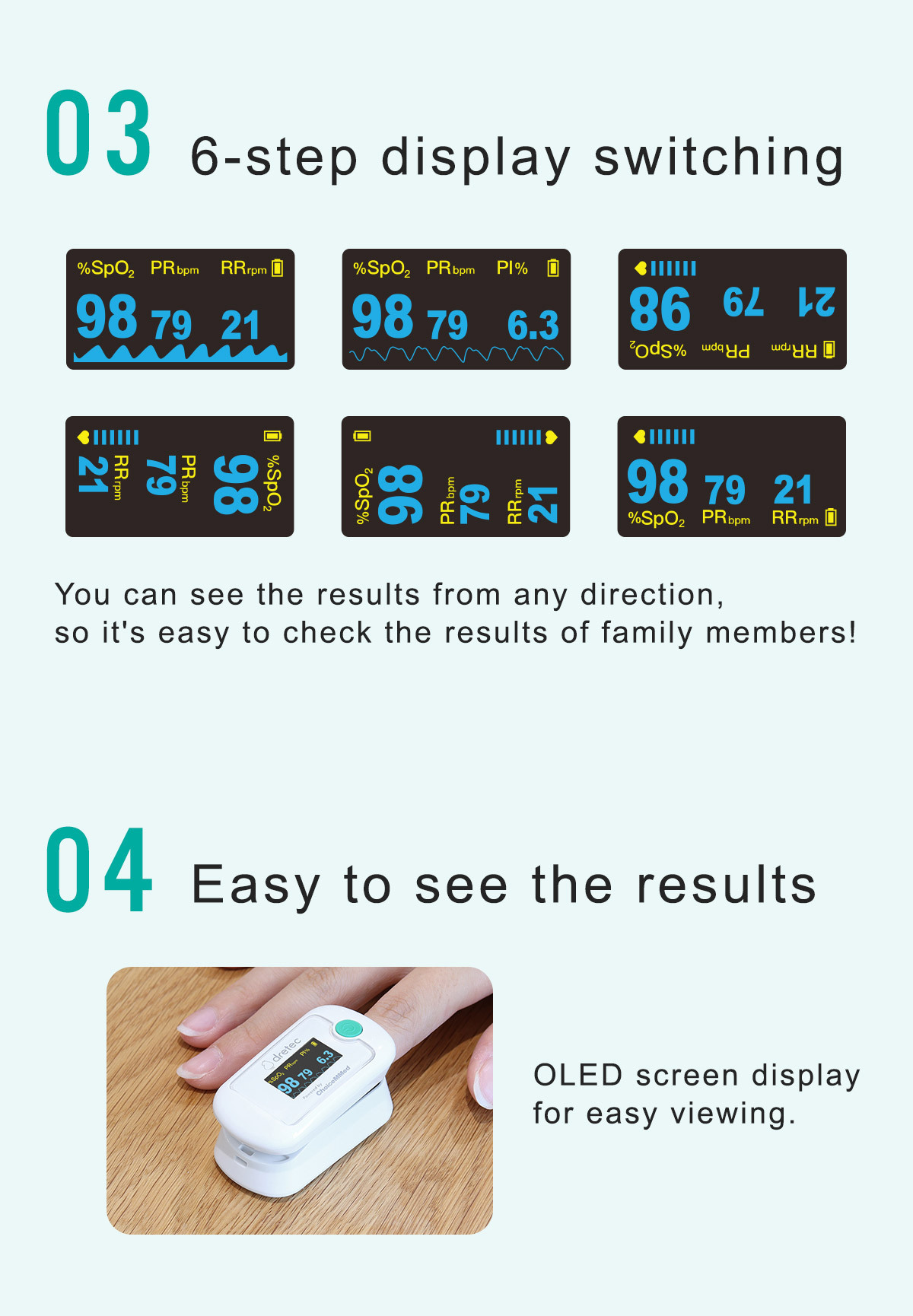

  • 6-step display switching
  • Easy-to-read screen display with OLED
  • 10-step brightness adjustment
  • Battery level indicator
  • Auto power off

Product specifications

Medical device authentication number
306AKBZX00058000
Classification
Machinery and appliances 21: Apparatus for internal organ function testing
Generic name
Pulse Oximeter
Classification of medical device
Specified maintenance management medical devices
Product name
Pulse Oximeter OXー105
Measurement method
2 wavelength absorbance method
Measurable range
SpO2：35%〜100％
Pulse rate：30bpm〜250bpm
Breating rate：4〜45rpm
PI value：0.3％〜20.0％
Measurement accuracy
SpO2：70%〜100％　±2％（70%未満規定なし）
Pulse rate：30bpm〜99bpm　±2bpm
　　　100bpm〜250bpm　±2％
Breating rate：±2rpm
PI value：0.3%〜1.0%　±0.2％
　　　1.1%〜20.0%　±2.0％
Operating environment temperature and humidity
5℃〜40℃　30〜85％RH
Storage environment temperature and humidity
-10℃〜60℃　10〜85％RH
Battery
AAA alkaline batteries x 2
Battery life
3000 times
Protection by electric shock
Internal power supply BF type
Product size
W60×D32×H29mm
Product weight
25g
Useful life
Four years (Dretec self-certification)
Accessories
Operation check battery (two AAA alkaline dry batteries) Strap Instruction Manual (with Warrant) Package inserts for medical devices
Barcode number
OX-105WT：4536117 047813
